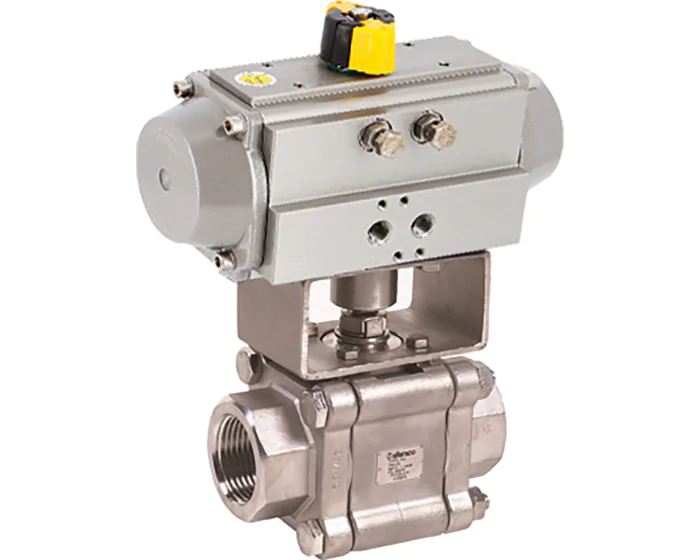

The 703 series 3-piece ball valve has a stainless steel (1.4408) body and ball and PTFE/carbon seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 100 bar, TS: 220°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 64.8 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Connections | BSP FF |
| Seats | PTFE-Carbon |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Double acting DN8 - 1/4'' | 272240017006R | S1001025 |
€297.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Spring return DN8 - 1/4'' | 272240017106R | S1001026 |
€332.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Double acting DN10 - 3/8'' | 272241017006R | S1001027 |
€299.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Spring return DN10 - 3/8'' | 272241017106R | S1001028 |
€334.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF Double acting | 272242017006R | S1001029 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF Spring return | 272242017107R | S1001030 |
€334.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Double acting | 272243017006R | S1001031 |
€302.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Spring return | 272243017107R | S1001032 |
€353.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Double acting | 272244017006R | S1001033 |
€357.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Spring return | 272244017108R | S1001034 |
€453.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting | 272245017007R | S1001035 |
€437.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return | 272245017108R | S1001036 |
€532.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting | 272246017007R | S1001037 |
€516.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return | 272246017109R | S1001038 |
€645.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Double acting | 272247017008R | S1001039 |
€817.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Spring return | 272247017110R | S1001040 |
€977.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF Double acting DN8 - 1/4'' | 272250017006R | S1001041 |
€297.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF Spring return DN8 - 1/4'' | 272250017106R | S1001042 |
€332.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF Double acting DN10 - 3/8'' | 272251017006R | S1001043 |
€299.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF Spring return DN10 - 3/8'' | 272251017106R | S1001044 |
€334.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' NPT FF Double acting | 272252017006R | S1001045 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' NPT FF Spring return | 272252017107R | S1001046 |
€334.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' NPT FF Double acting | 272253017006R | S1001047 |
€302.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' NPT FF Spring return | 272253017107R | S1001048 |
€353.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' NPT FF Spring return | 272254017108R | S1001049 |
€453.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 NPT FF Double acting | 272255017007R | S1001050 |
€437.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 NPT FF Spring return | 272255017108R | S1001051 |
€532.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 NPT FF Double acting | 272256017007R | S1001052 |
€516.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 NPT FF Spring return | 272256017109R | S1001053 |
€645.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' NPT FF Double acting | 272257017008R | S1001054 |
€817.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' NPT FF Spring return | 272257017110R | S1001055 |
€977.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Double acting DN8 - 1/4'' Welding BW | 272260017006R | S1001056 |
€297.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Spring return DN8 - 1/4'' Welding BW | 272260017106R | S1001057 |
€332.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Double acting Welding BW DN10 - 3/8'' | 272261017006R | S1001058 |
€299.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Spring return Welding BW DN10 - 3/8'' | 272261017106R | S1001059 |
€334.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting Welding BW | 272262017006R | S1001060 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Welding BW | 272262017107R | S1001061 |
€334.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting Welding BW | 272263017006R | S1001062 |
€302.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return Welding BW | 272263017107R | S1001063 |
€353.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting Welding BW | 272264017006R | S1001064 |
€357.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Spring return Welding BW | 272264017108R | S1001065 |
€453.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting Welding BW | 272265017007R | S1001066 |
€437.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return Welding BW | 272265017108R | S1001067 |
€532.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting Welding BW | 272266017007R | S1001068 |
€516.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return Welding BW | 272266017109R | S1001069 |
€645.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting Welding BW | 272267017008R | S1001070 |
€817.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return Welding BW | 272267017110R | S1001071 |
€977.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Double acting DN8 - 1/4'' Welding SW | 272280017006R | S1001072 |
€297.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Spring return DN8 - 1/4'' Welding SW | 272280017106R | S1001073 |
€332.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Double acting DN10 - 3/8'' Welding SW | 272281017006R | S1001074 |
€299.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Spring return DN10 - 3/8'' Welding SW | 272281017106R | S1001075 |
€334.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting Welding SW | 272282017006R | S1001076 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Welding SW | 272282017107R | S1001077 |
€334.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting Welding SW | 272283017006R | S1001078 |
€302.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return Welding SW | 272283017107R | S1001079 |
€353.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting Welding SW | 272284017006R | S1001080 |
€357.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Spring return Welding SW | 272284017108R | S1001081 |
€453.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting Welding SW | 272285017007R | S1001082 |
€437.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return Welding SW | 272285017108R | S1001083 |
€532.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW | 272286017007R | S1001084 |
€516.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return Welding SW | 272286017109R | S1001085 |
€645.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting Welding SW | 272287017008R | S1001086 |
€817.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return Welding SW | 272287017110R | S1001087 |
€977.97
(excl. btw)
|
add to cart |
